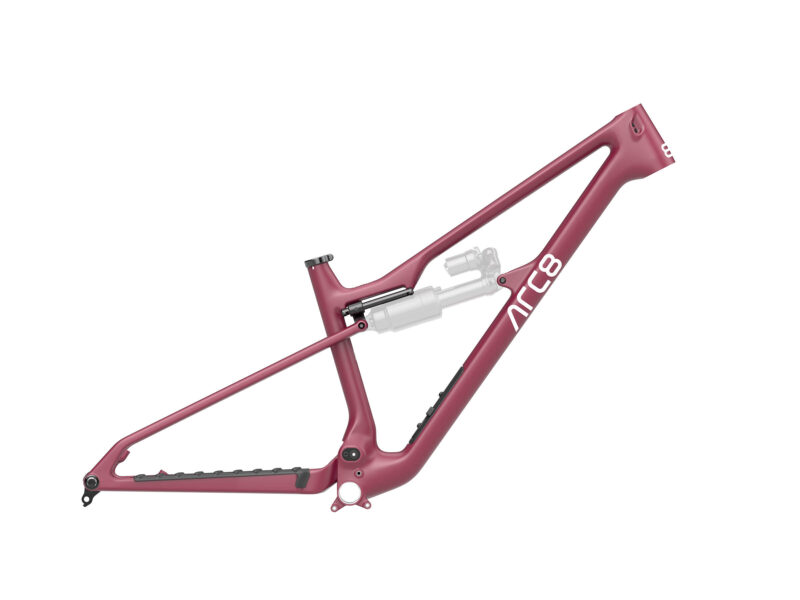

Picture might differ from specification.

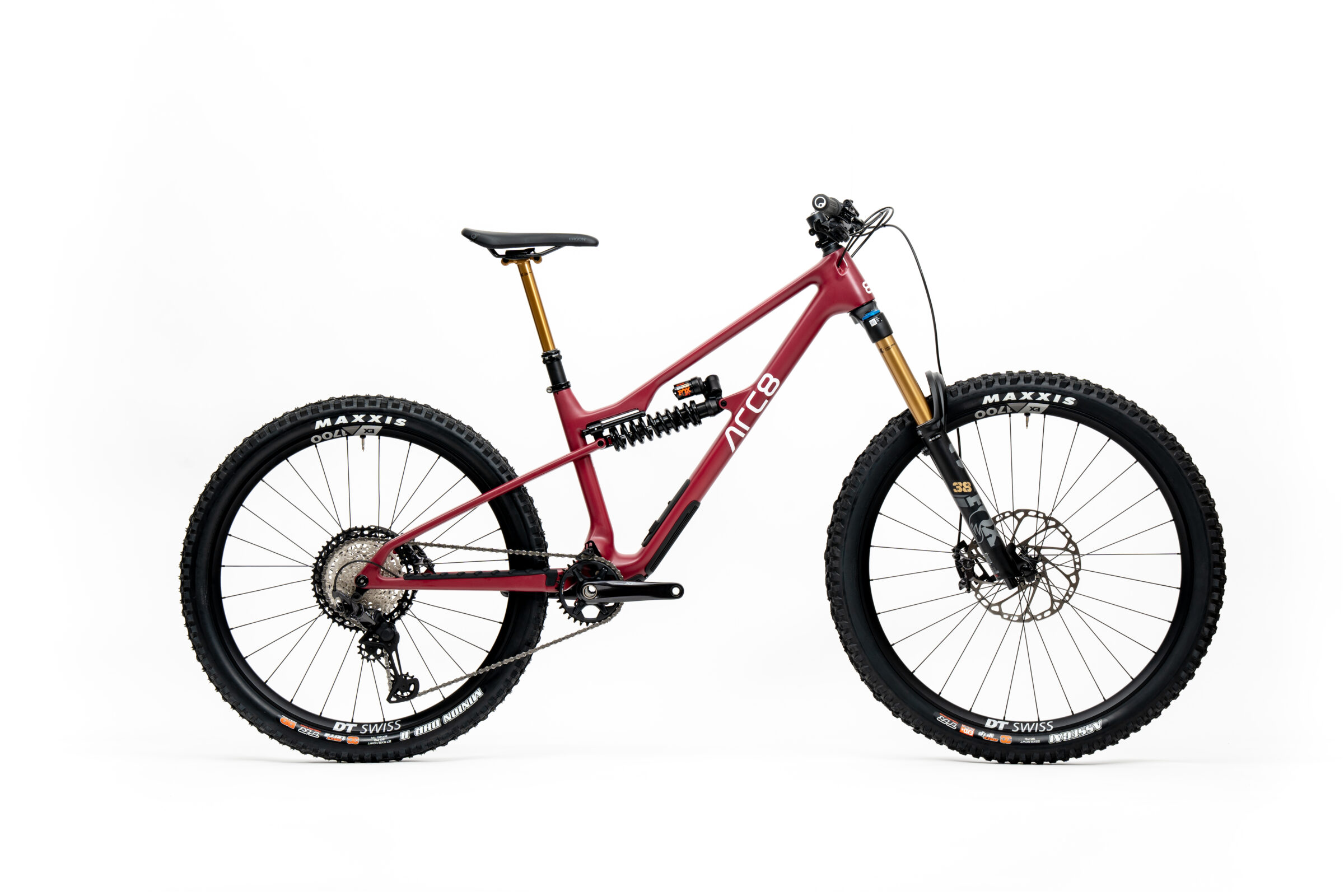

Picture might differ from specification.

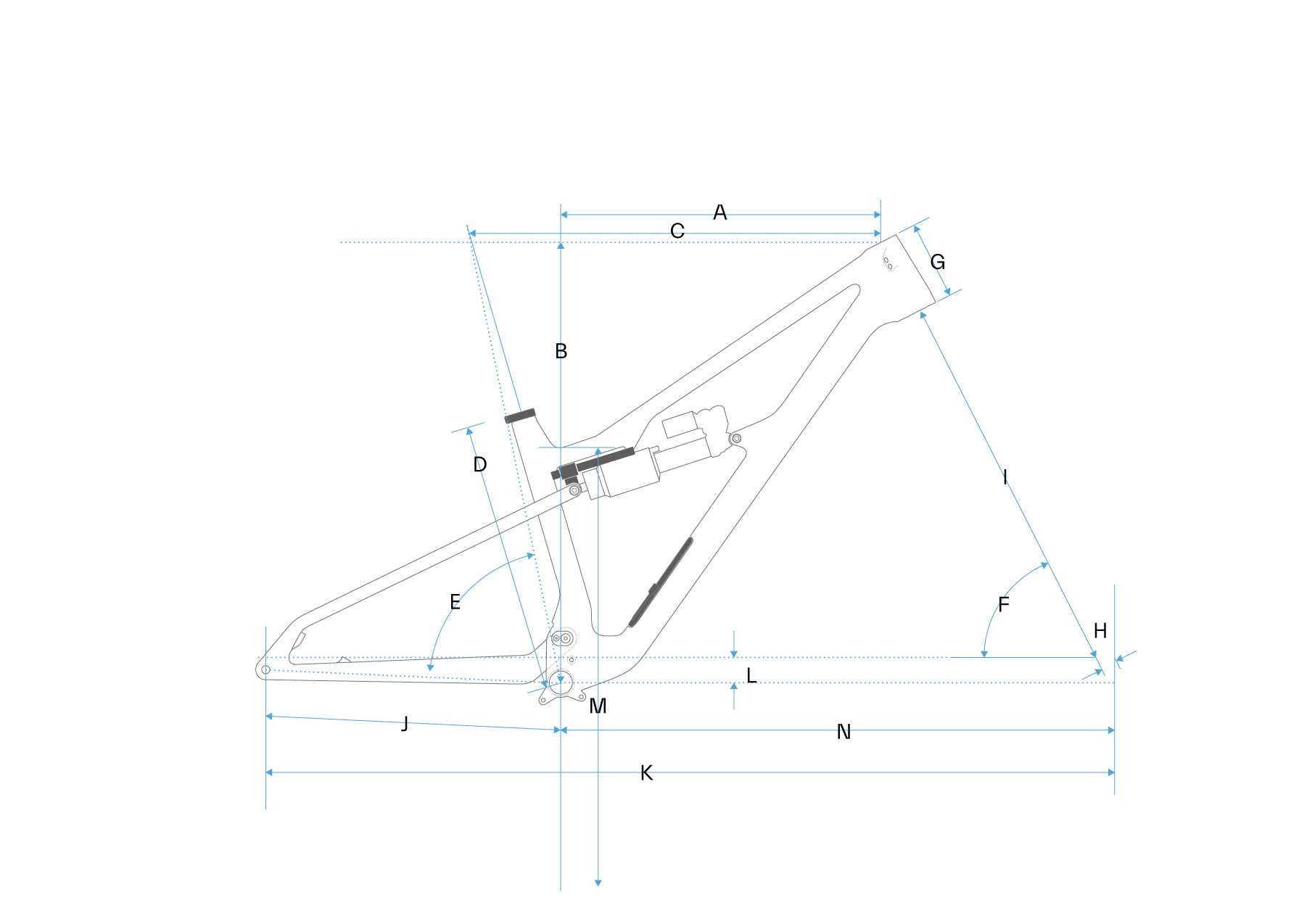

| Size | S (27.5/High) | S (29/Low) | M (27.5/High) | M (29/Low) | L (27.5/High) | L (29/Low) | |
|---|---|---|---|---|---|---|---|
| Rider Height | Up to 174 cm | 174 - 183 cm | Taller than 183 cm | ||||
| A | Reach | 440 | 440 | 470 | 470 | 500 | 500 |
| B | Stack | 632 | 632 | 646 | 646 | 664 | 664 |
| C | TT | 575 | 575 | 607 | 607 | 641 | 641 |
| D | ST | 380 | 380 | 400 | 400 | 440 | 440 |
| E | SA (eff. SA) | 78 | 78 | 78 | 78 | 78 | 78 |
| F | HA | 63 | 63 | 63 | 63 | 63 | 63 |
| G | HT | 100 | 100 | 115 | 115 | 135 | 135 |
| H | Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| I | Fork A-C | 588 | 588 | 588 | 588 | 588 | 588 |
| J | CS | 430 | 442 | 433 | 445 | 436 | 448 |
| K | Wheelbase | 1221 | 1233 | 1261 | 1273 | 1291 | 1314 |
| L | BB Drop | 38 | 38 | 38 | 38 | 38 | 38 |
| Component | Specification | Comment |
|---|---|---|
| Headset | Acros AiX-322 R3: IS 52/41; IS 41,8/28,6 | |
| Seatpost | ø 31.6 | |
| Seatpost Clamp | ø 34.9 | |
| Rear Brake | Postmount 203 mm | |
| Rear Axle | 148 x 12 mm | Shimano E-Thru Standard |
| Rear Wheel | 29" or 27.5" | |
| BB | BSA 73 mm | |
| Min. / Max. Chainring Size | 28t / 34t | |
| Chainline | 55 mm | |
| Chainguide | ISCG05 | |
| Shock Size | 250 x 75 | 20 x 8 on eyelet, no hardware on body |
| Shock Type | Air and coil shock possible | We strongly recommend purchasing the frame including the shock, as we use custom tunes specifically calibrated for our frames, ensuring optimal performance |
| Fork | 160 - 180 mm travel | no double crown fork possible |
| Tires | 29 X 2.5 tires on 30 mm inner width rim | 2.6 depending on the inner width rim and tire dimensions |
| Bottle | 0.59l bottle (fidlock), or 0.5l bottle (standard) | Sideload bottle cage recommended (e.g Blackburn Side Entry) |
