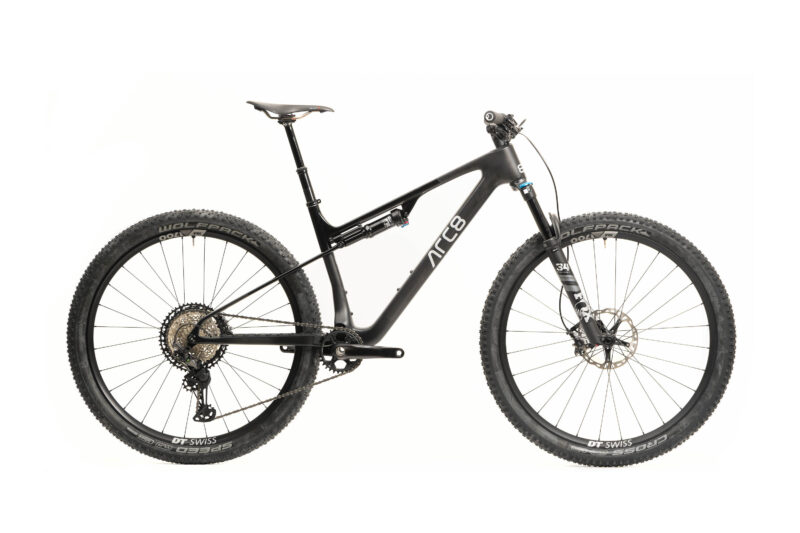

Picture might differ from specification.

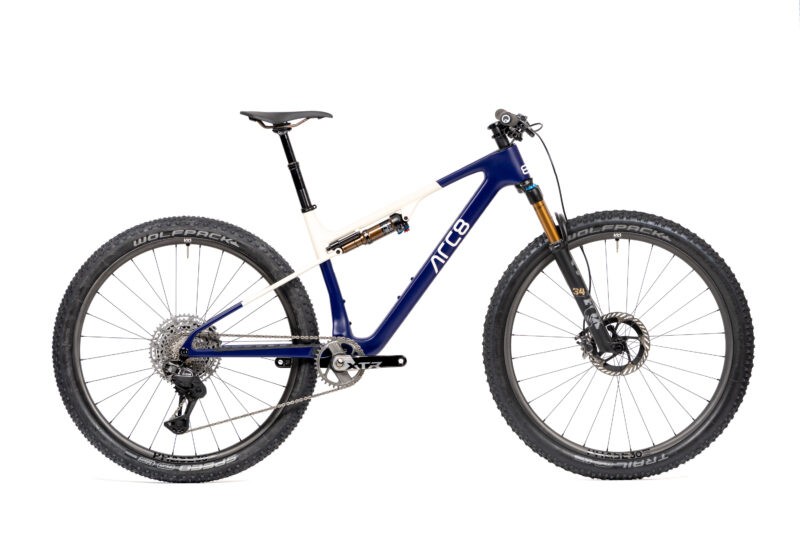

Picture might differ from specification.
| Size | M (120 mm fork) | M (110 mm fork) | L (120 mm fork) | L (110 mm fork) | |
|---|---|---|---|---|---|
| Rider Height | 160-178 | 160-178 | 178-190 | 178-190 | |
| A | Reach | 465 | 469 | 495 | 499 |
| B | Stack | 588 | 585 | 597 | 594 |
| C | TT | 612 | 611 | 635 | 634 |
| D | ST | 440 | 440 | 480 | 480 |
| E | SA (virtual) | 76 | 76.4 | 76 | 76.4 |
| SA (real) | 72.7 | 73.1 | 72.7 | 73.1 | |
| F | HA | 65 | 65.4 | 65 | 65.4 |
| G | HT | 100 | 100 | 110 | 110 |
| H | Fork Offset | 44 | 44 | 44 | 44 |
| I | Fork A-C | 530 | 521 | 530 | 521 |
| J | CS | 430 | 430 | 430 | 430 |
| K | Wheelbase | 1200 | 1196 | 1234 | 1230 |
| L | BB Drop | 35 | 38 | 35 | 38 |
| M | Standover | 684 | 677 | 682 | 679 |
| Component | Specification | Comment |
|---|---|---|
| Headset | IS52/42 | IS52/42 | Acros, cover customized for ARC8 |
| Seatpost | ø30.9 | maximum insertion 245 mm |
| Seatpost Clamp | ø34.9 | |
| Rear Brake | Flatmount 160 mm | max. 180 mm with adaptor |
| Rear Axle | 148 x 12 mm | M12 x 1, length 178 mm |
| Rear Wheel | Boost (148 mm) rear hub | |
| BB | BSA 73 mm | |
| Max. Chainring Size | 38 T with 55 mm chainline | |
| Chainline | 55 mm | |
| Chainguide | 77 Designz FREESOLO-BB-38 | |
| Rear Derailleur Hanger | Sram UDH | |
| Fork | 120 mm travel max. | |
| Shock Size | 210 x 55 (110 mm travel), 210 x 50 (100 mm travel) | Remote lockout possible |
| Shock Hardware | 20 x 8 on eyelet, no hardware on body | |
| Tires | 29 x 2.4 max | On 30 mm inner width rim. |
| Bottlecage | on seat tube and down tube |
