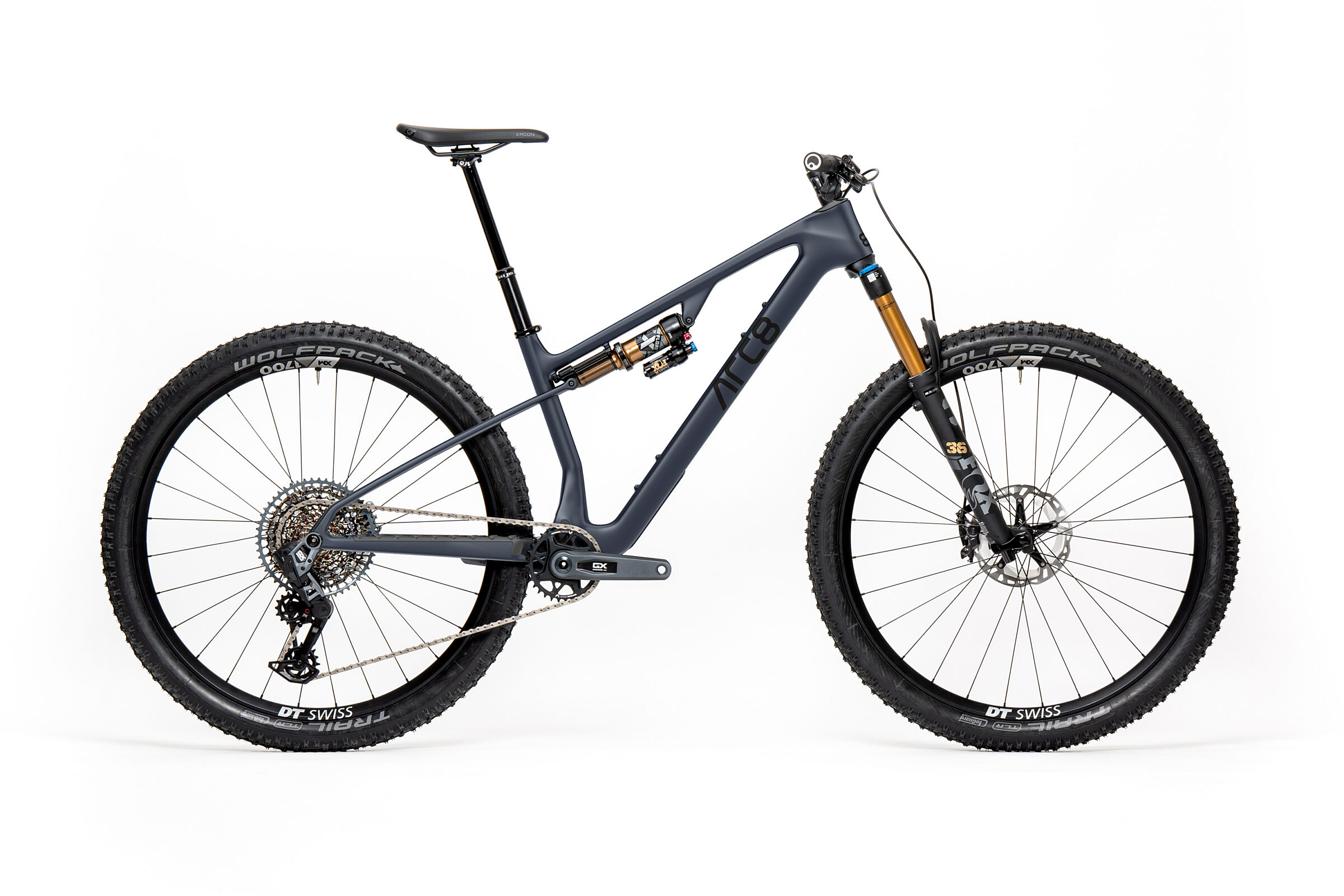

Picture might differ from specification.
Picture might differ from specification.
| Size | M | L | |
|---|---|---|---|
| Rider Height | 160-178 | 178-190 | |
| A | Reach | 465 | 495 |
| B | Stack | 615 | 628 |
| C | TT | 596 | 652 |
| D | ST | 410 | 440 |
| Max. Seatpost Insertion | 245 | 265 | |
| E | SA (virtual) | 76 | 76 |
| SA (real) | 71 | 71 | |
| F | HA | 64 | 64 |
| G | HT | 100 | 115 |
| H | Fork Offset | 44 | 44 |
| I | Fork A-C | 561 | 561 |
| J | CS | 430 | 430 |
| K | Wheelbase | 1222 | 1259 |
| L | BB Drop | 40 | 40 |
| M | Standover | 702 | 704 |
| Component | Specification | Comment |
|---|---|---|
| Headset | IS52/42 | IS52/42 | Acros, cover customized for ARC8 |
| Seatpost | ø30.9 | |
| Seatpost Clamp | ø34.9 | |
| Rear Brake | Flatmount 180 mm | 200 mm with adaptor |
| Rear Axle | 148 x 12 mm | M12 x 1, length 178 mm |
| Rear Wheel | Boost (148 mm) rear hub | |
| BB | BSA 73 mm | |
| Max. Chainring Size | 38 T | |
| Chainline | 55 mm | |
| Chainguide | 77 Designz FREESOLO V2-05+BSA | |
| Rear Derailleur Hanger | Sram UDH | |
| Fork | 150 mm travel max. | |
| Shock Size | 230 x 65 (130 mm travel), 230 x 60 (120 mm travel) | Remote lockout possible |
| Shock Type | Fox Float X, Fox Float DPS, Rock Shox Super Deluxe, Rock Shox Deluxe | Air shocks only. Other shock models need to be checked for clearance prior to installation. |
| Shock Hardware | 20 x 8 on eyelet, no hardware on body | |
| Tires | 29 x 2.5 max | Since the actual tire width depends on the rim and tire model, make sure there is at least 6 mm of clearance between tire and frame. |
