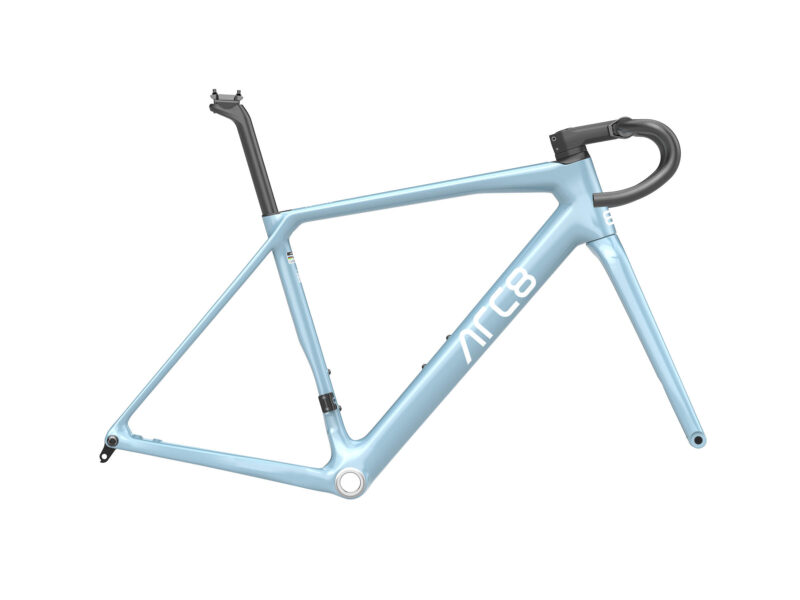

Picture might differ from specification.

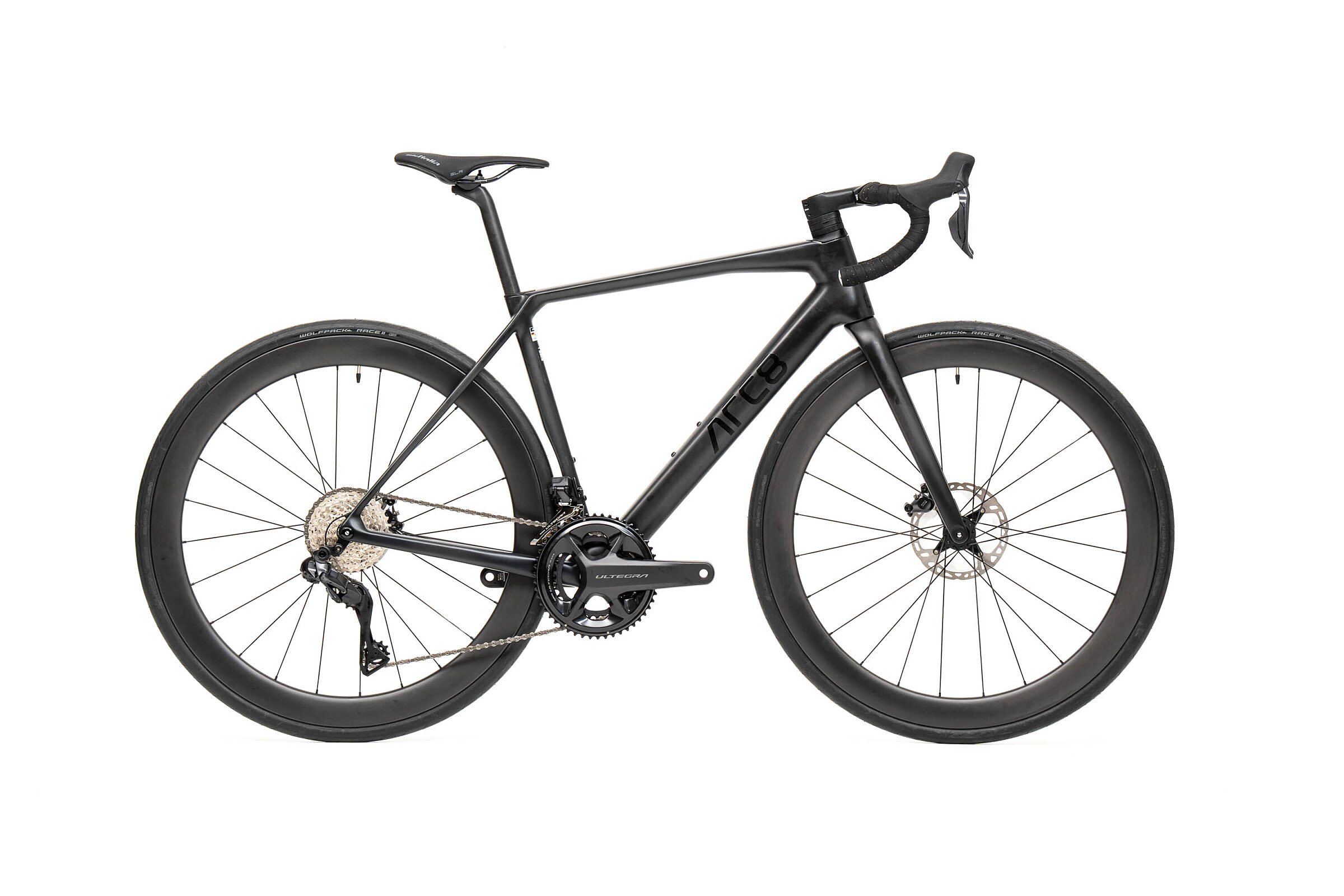

Picture might differ from specification.
| 48 | 51 | 54 | 57 | 60 | ||
|---|---|---|---|---|---|---|
| Rider Height | <170 | 170-176 | 175-181 | 180-187 | >187 | |
| A | Reach | 357 | 369 | 380 | 393 | 405 |
| B | Stack | 505 | 522 | 541 | 560 | 580 |
| C | Top Tube Length | 506 | 523 | 540.5 | 558.5 | 576 |
| D | Seat Tube Length | 422 | 453 | 477 | 499 | 521 |
| E | Seat Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| F | Head Tube Angle | 70.5 | 72 | 72 | 72 | 72 |
| G | Head Tube Length | 103 | 116 | 135 | 156 | 176 |
| H | Fork Offset | 50 | 50 | 50 | 50 | 50 |
| I | Fork Length | 375 | 375 | 375 | 375 | 375 |
| J | Chain Stay Length | 402 | 402 | 402 | 402 | 402 |
| K | Wheelbase | 959.5 | 978 | 982 | 1000 | 1018 |
| L | BB Drop | 71 | 71 | 71 | 71 | 71 |
| Component | Specification | Comment |
|---|---|---|
| Front Derailleur | braze-on | |
| Shifting Systems | Mechanical, Di2, Etap | |
| Brakes | Flat Mount | 140 mm rotors, 160 mm with adaptor |
| Tires | 700C x 28 | Depending on rim/tire manufacturer, larger tires may fit |
| Axles | 12 x 142/12 x 100 | Following Shimano Standard |
| Seatpost | ø27.2 | |
| Seatpost clamp | ø30.9 | |
| Headset | ICH | integrated system |
| BB | BSA 68 | |
| Chainrings | 52/36-46/30 | For Sram AXS: 48/35-46/33 |
