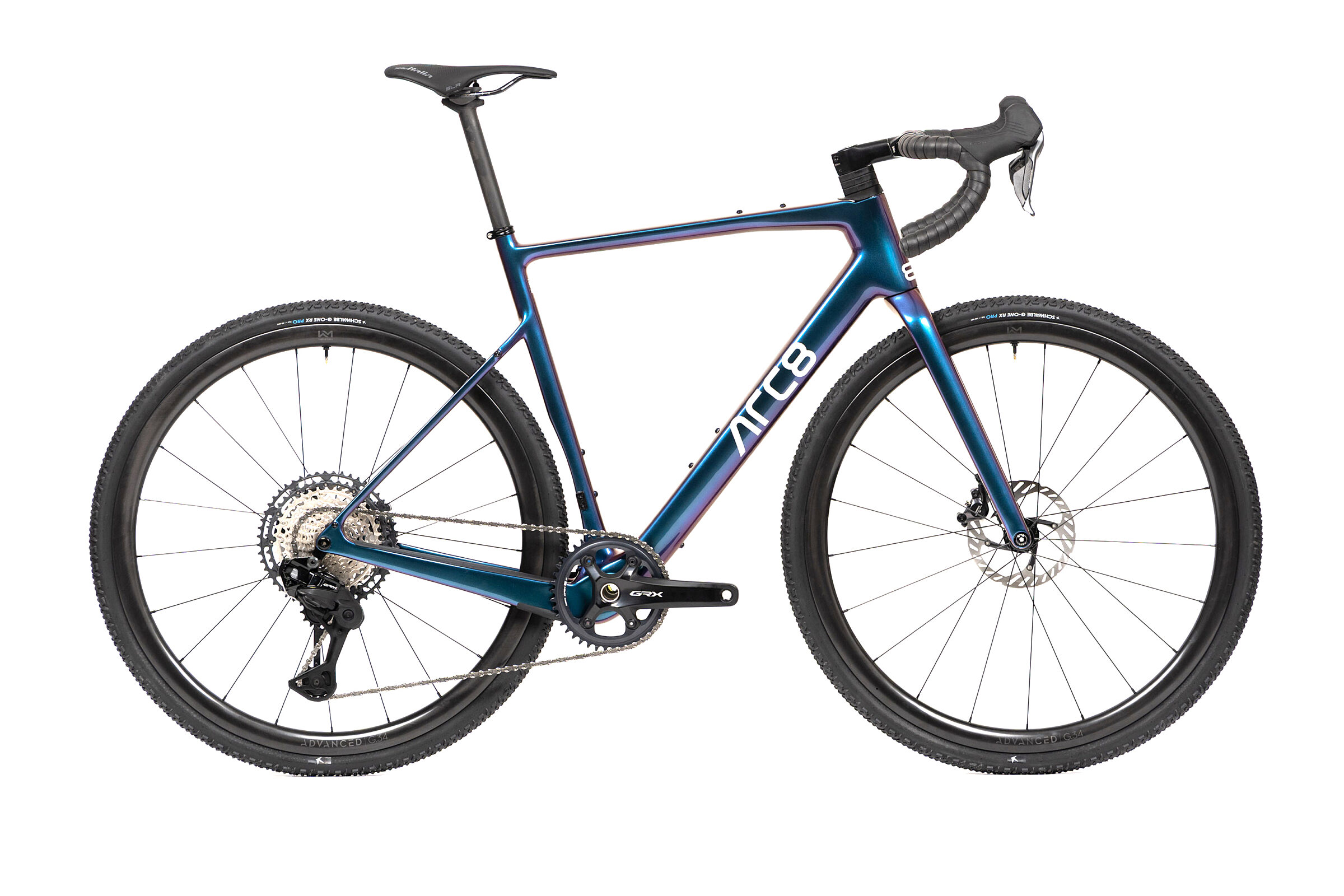

Picture might differ from specification.

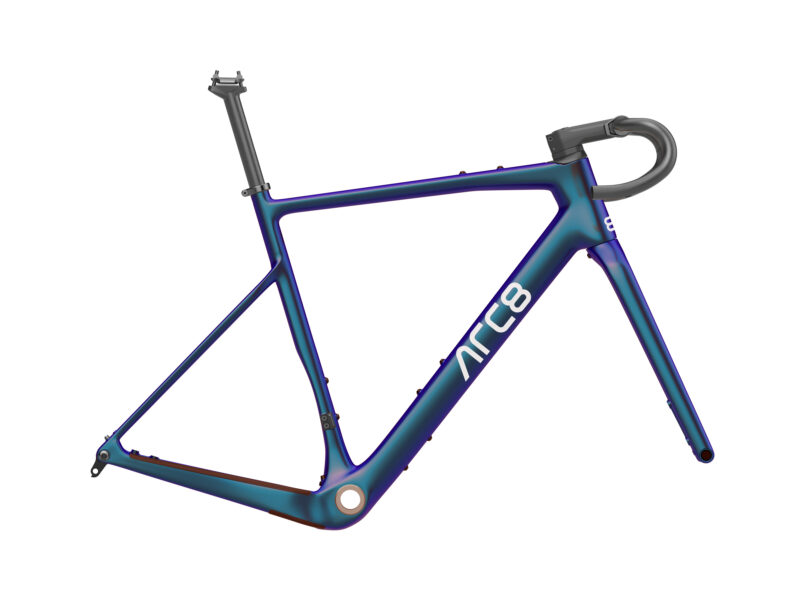

Picture might differ from specification.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| Rider Height | 170-176 | 175-181 | 180-187 | >187 | |
| A | Reach | 364 | 376 | 388 | 400 |
| B | Stack | 545 | 568 | 593 | 618 |
| C | Top Tube Length | 525 | 545 | 564 | 583 |
| D | Seat Tube Length | 510 | 550 | 570 | 600 |
| E | Seat Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| F | Head Tube Angle | 70 | 71 | 71 | 71 |
| G | Head Tube Length | 137 | 157 | 170 | 197 |
| H | Fork Offset | 50 | 50 | 50 | 50 |
| I | Fork Length | 395 | 395 | 395 | 395 |
| J | Chain Stay Length | 420 | 420 | 420 | 420 |
| K | Wheelbase | 1002 | 1012 | 1032 | 1053 |
| L | BB Drop | 75 | 75 | 75 | 75 |
| Stand Over Height | 774 | 809 | 830 | 858 |
| Component | Specification | Comment |
|---|---|---|
| Front Derailleur | braze-on | |
| Shifting Systems | Mechanical, Di2, Etap | |
| Brakes | Flat Mount | 160 mm rotors, 180 mm with adaptor. Rear mount height 25 mm |
| Tires | 700C x 50 max. | 700Cx50 tires are only compatible with an Oneby drivetrain. The size of the knobs might have an influence on tire clearance. 650b compatible. |
| 700C x 45 | For Twoby drivetrains only 700Cx45 tires are possible. The size of the knobs might have an influence on tire clearance. | |
| Axles | 12 x 142 / 12 x 100 | Following Shimano standard |
| Seatpost | ø27.2 | |
| Seatpost clamp | ø30.9 | |
| Headset | ICH | integrated system |
| BB | BSA 68 | |
| Max. chainring size | Shimano GRX 1x and 2x | all available |
| Sram Force Wide | max. 42T | |
| Easton | 47.6 chainline 40T maximum; 51.6 chainline: 50T | |
| Campagnolo | Ekar 38 T maximum | |
| Fenders | Mounts for regular fenders on frame and fork | |
| Storage | 3x bottle cage; top tube bag; rear carrier |
