Essential - XT

 ESSENTIAL2 MY26 graphit grey XT

Picture might differ from specification.

Choose your frame

Build your bike

Configuration notes

Overview

Prices

incl. VAT



Build specs & prices

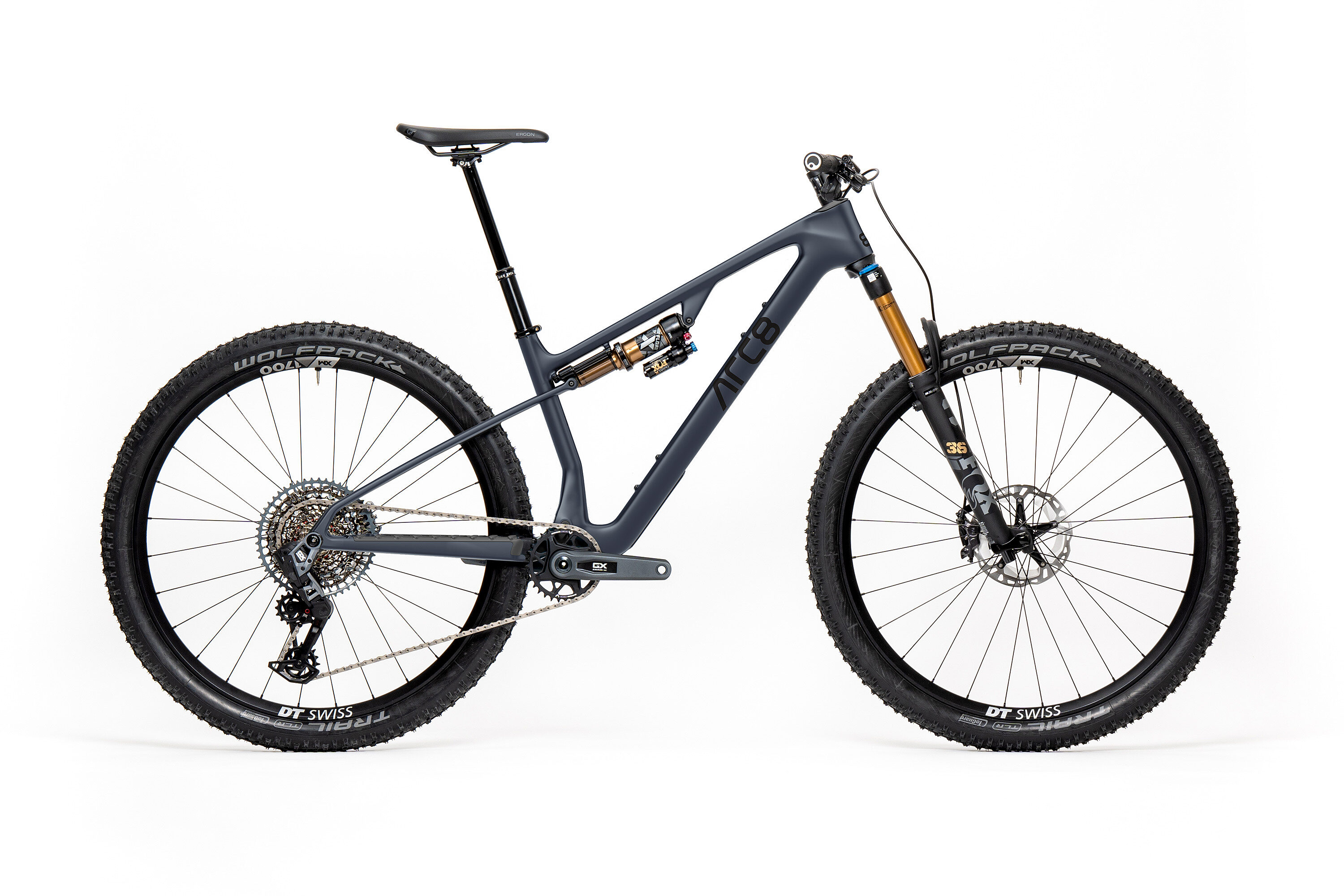

ESSENTIAL2 MY26 graphit grey MX XT Di2 - Fox Factory
€7,199 Configure →
Colors
Frame Essential, full carbon
Fork Fox 36SL Factory; 140mm
Shock Fox Float Factory; 130mm
Seat Post BikeYoke Revive 185mm / Triggy Alpha Long w/ I-spec adapter left
Headset Evolve FS / Essential
Axle M12xP1.0; 148mm
Stem Faserwerk Baslerstab; 35 / 50mm
Handlebar Faserwerk Baslerstab; 800mm
Grips Ergon GA20
Saddle Ergon SM10 Enduro
Front Brake Shimano XT M8120; 4 piston
Rear Brake Shimano XT MT805; 2 piston
Front Rotor Shimano CL800; 180mm
Rear Rotor Shimano CL800; 180mm
Crank Shimano XT M8200; 32t; 165mm
Bottom Bracket Shimano MT801 BSA
Cassette Shimano XT M8200; 10-51
Chain Shimano M8100
Shift Lever Shimano XT Di2 M8250
Rear Derailleur Shimano XT Di2 M8250
Front Wheel DT Swiss XM 1700 SPLINE
Rear Wheel DT Swiss XM 1700 SPLINE
Front Tire Maxxis DHF 29x2.5WT; MaxxGrip; Exo
Rear Tire Maxxis Dissector 29x2.4; MaxxTerra, Exo+
Tube tubeless

ESSENTIAL2 MY24 petrol MX web GX AXS
€6,499 Configure →
Colors
Frame Essential, full carbon
Fork Fox 36 Performance Grip; 150mm
Shock Fox Float X Performance; 160mm
Seat Post BikeYoke Revive 185mm / Triggy Alpha Long w/ I-spec adapter left
Headset Evolve FS / Essential
Axle M12xP1.0; 148mm
Stem Newmen Evolution; 40mm
Handlebar ARC8 handlebar; 780mm; 20mm Rise
Grips Ergon GA20
Saddle Ergon SM10 Enduro
Front Brake Shimano XT M8120; 4 piston
Rear Brake Shimano XT MT805; 2 piston
Front Rotor Shimano CL800; 180mm
Rear Rotor Shimano CL800; 180mm
Crank SRAM GX Eagle Transmission; 32t; 165mm
Bottom Bracket SRAM DUB BSA
Cassette SRAM XS 1275; 10-52
Chain SRAM GX T-Type
Shift Lever SRAM Pod
Rear Derailleur SRAM GX Eagle Transmission
Front Wheel DT Swiss M 1900 SPLINE
Rear Wheel DT Swiss M 1900 SPLINE
Front Tire Maxxis Dissector 29x2.4; MaxxGrip, Exo
Rear Tire Maxxis Dissector 29x2.4; MaxxTerra, Exo+
Tube tubeless
Weight (Size M) 12.2 kg

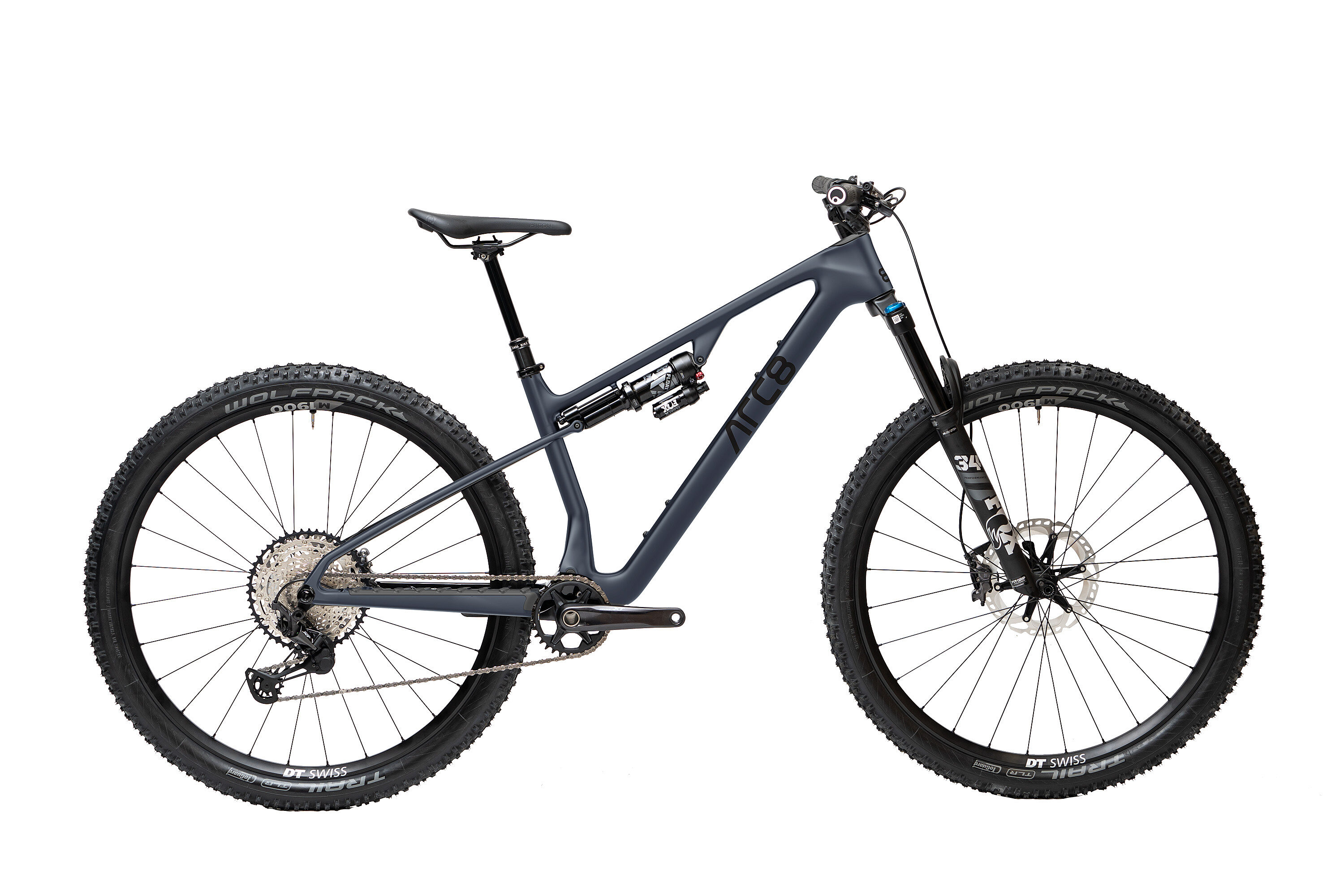

ESSENTIAL2 MY26 graphit grey XT XT - Fox Performance
€4,799
Colors
Frame ARC8 Essential, full carbon
Fork Fox 36 Float Performance; Grip; 150mm
Shock Fox Float X Performance; 130mm
Seat Post BikeYoke Revive
Headset Acros AIF-531
Axle M12xP1.0; 148mm
Stem Newmen Evolution
Handlebar ARC8 handlebar, alloy; 800mm
Grips Ergon GA20
Saddle Ergon SMC10
Front Brake Shimano XT M8200 4-Piston
Rear Brake Shimano XT M805 2-Piston
Front Rotor Shimano CL800; 203mm
Rear Rotor Shimano CL800; 180mm
Crank Shimano XT M8200; 32t; 165mm
Bottom Bracket Shimano MT801 BSA
Cassette Shimano XT M8200; 10-51
Chain Shimano XT M8100
Shift Lever Shimano XT M8200
Rear Derailleur Shimano XT M8200
Front Wheel DT SWISS XM 1700 Spline
Rear Wheel DT SWISS XM 1700 Spline
Front Tire Maxxis Dissector 29x2.4; MaxxTerra, Exo
Rear Tire Maxxis Dissector 29x2.4; MaxxTerra, Exo+
Tube tubeless

ARC8 Frame MY24 essential II graphit grey FRAME SET
Configure → €2,099 →
Colors
Frame Essential, full carbon

Shock w/o shock

Headset Evolve FS / Essential
Axle M12xP1.0; 148mm





















Geometry

Size M L
Rider Height 160-178 178-190
A Reach 465 495
B Stack 615 628
C TT 596 652
D ST 410 440
Max. Seatpost Insertion 245 265
E SA (virtual) 76 76
SA (real) 71 71
F HA 64 64
G HT 100 115
H Fork Offset 44 44
I Fork A-C 561 561
J CS 430 430
K Wheelbase 1222 1259
L BB Drop 40 40
M Standover 702 704

Technical details

Component Specification Comment
Headset IS52/42 | IS52/42 Acros, cover customized for ARC8
Seatpost ø30.9
Seatpost Clamp ø34.9
Rear Brake Flatmount 180 mm 200 mm with adaptor
Rear Axle 148 x 12 mm M12 x 1, length 178 mm
Rear Wheel Boost (148 mm) rear hub
BB BSA 73 mm
Max. Chainring Size 38 T
Chainline 55 mm
Chainguide 77 Designz FREESOLO V2-05+BSA
Rear Derailleur Hanger Sram UDH
Fork 150 mm travel max.
Shock Size 230 x 65 (130 mm travel), 230 x 60 (120 mm travel) Remote lockout possible
Shock Type Fox Float X, Fox Float DPS, Rock Shox Super Deluxe, Rock Shox Deluxe Air shocks only. Other shock models need to be checked for clearance prior to installation.
Shock Hardware 20 x 8 on eyelet, no hardware on body
Tires 29 x 2.5 max Since the actual tire width depends on the rim and tire model, make sure there is at least 6 mm of clearance between tire and frame.
→ Download Assembly Instruction
